AK85C Automatic Foot Lifter Device For DDL JUKI 7000A

AK85C
Automatic Foot Lifter Device for JUKI Industrial Single Needle Sewing Machines
Quantity:
Contact Now
add to cart
 Description：

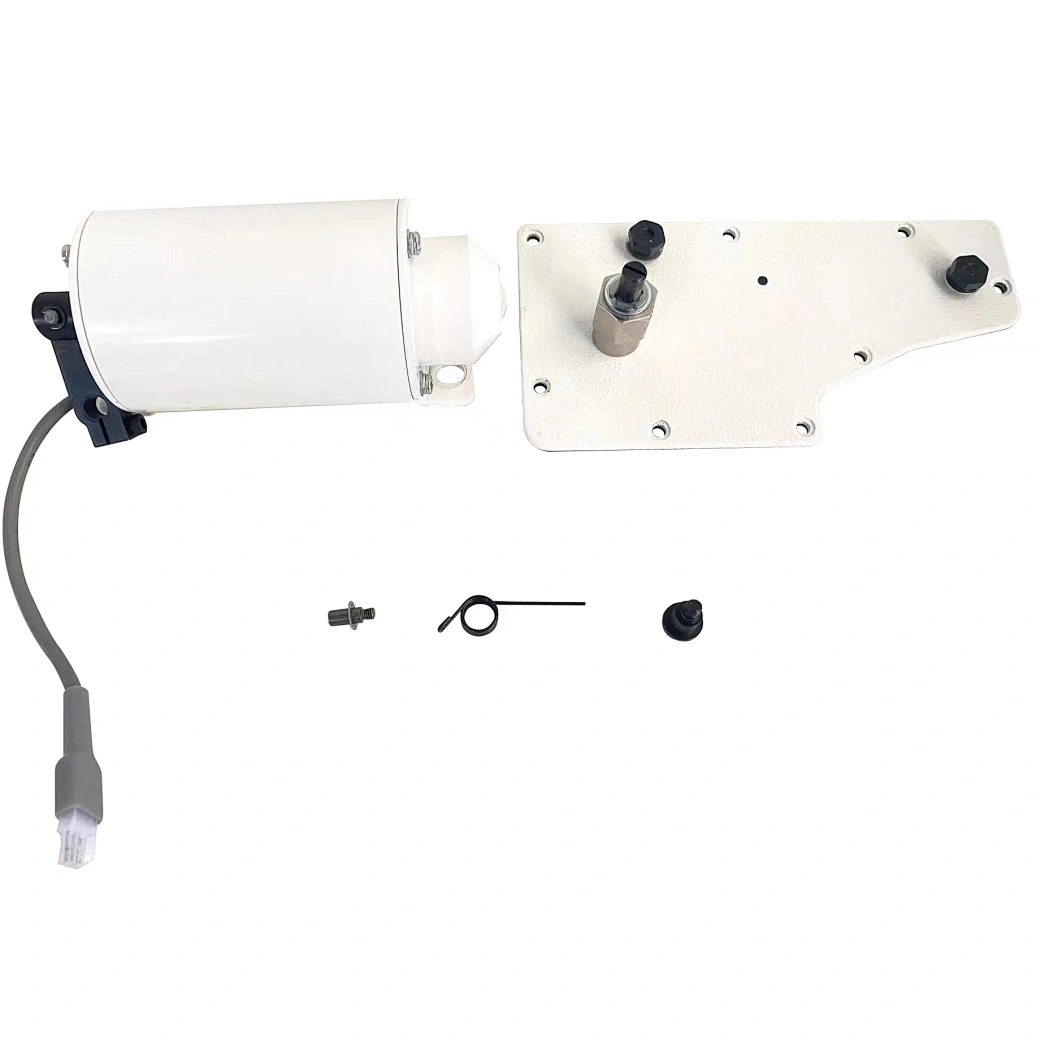

Spare part: AK85C Automatic Foot Lifter Device For DDL JUKI 7000A

1. Simple installation；
2. Usable in combination with the knee lifter；
3. Original quality, made in Taiwan;
Application：
1. Generic auto presser foot lifter device;
2. Window-plate-mounting type;
3. Suitable for single needle industrial sewing machine like JUKI Models: DDL-7000A；
Specification：
1. Presser foot lifting amount:
(1) Manual presser foot lift: 5.5mm；
(2) Automatic presser foot lift(AK85-C): 9mm；
(3) Knee lift presser foot: 13mm;
2. Max. presser foot pressure: 88N；
Installation：
1. Remove the rear cover of the macine;
2. Replace the connecting hinges screw with the silver screw as shown in the figure;
3. Remove nut, washer;
4. Install the attached rear cover on the machine, and ensure that the siot of link arm is locked on the special screw;
5. Tighen the solenoid body on the rear cover plate with washers and nuts;
6. Push the solenoid shaft in the arrow mark direction;
7. Turn the connecting shaft in the most counter clockwise direction.Mark sure the movement of the whole mechanism is very smooth before tightening the clamping screw;
8. Plug the wire of the foot lifter into the control box of the motor. Re-check that he wire is not obstructing any moving parts;
9. In some type of motor, be sure to properly set the Dip-Switch in the control box before using the auto foot lifter;
