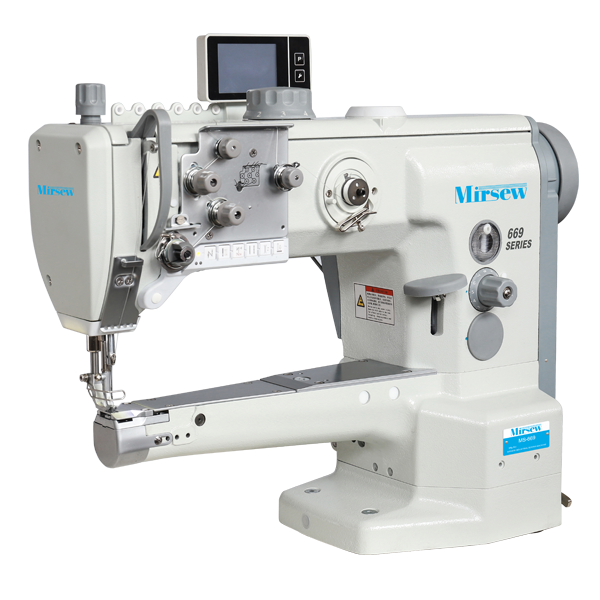

MS-669-111126/MS-669-121226 Single Needle Cylinder Bed Compound Feed Lockstitch
MS-669-111126/MS-669-121226
Quantity:
Description:
MS-669-111126/MS-669-121226 Single Needle Cylinder Bed Compound Feed Lockstitch
MS-669-111126/MS-669-121226 Single Needle Cylinder Bed Compound Feed Lockstitch
1. The powerful compound feeding system including feeddog feeding, needle feeding and alternating presser footfeeding, guarantees feeding material freely without shift.
2. The lifting height of presser foot can reach 20mm whichis convenient to sew heavy materials.
3. Max. alternation of presser foot reach 9mm which cansew differential thick materials.
4. Large working space (335mm width and 125mm height) which would be easier for large area materials.
5. Efficlent basic functions such as automatic thread trimmer, automatic back tacking, walking foot and pneumatic presser foot lifter.
2. The lifting height of presser foot can reach 20mm whichis convenient to sew heavy materials.
3. Max. alternation of presser foot reach 9mm which cansew differential thick materials.
4. Large working space (335mm width and 125mm height) which would be easier for large area materials.
5. Efficlent basic functions such as automatic thread trimmer, automatic back tacking, walking foot and pneumatic presser foot lifter.
Scope of sewing:
1. The Max. stitch length is 9mm.
2. The thickest thread is Nm10/3.
3. The Max. sewing speed is 3000 R.P.M.
2. The thickest thread is Nm10/3.
3. The Max. sewing speed is 3000 R.P.M.

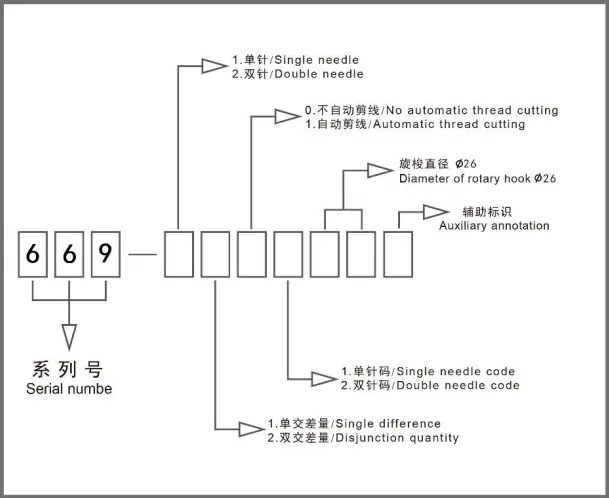

Code diagram:
Specification:
Video：
