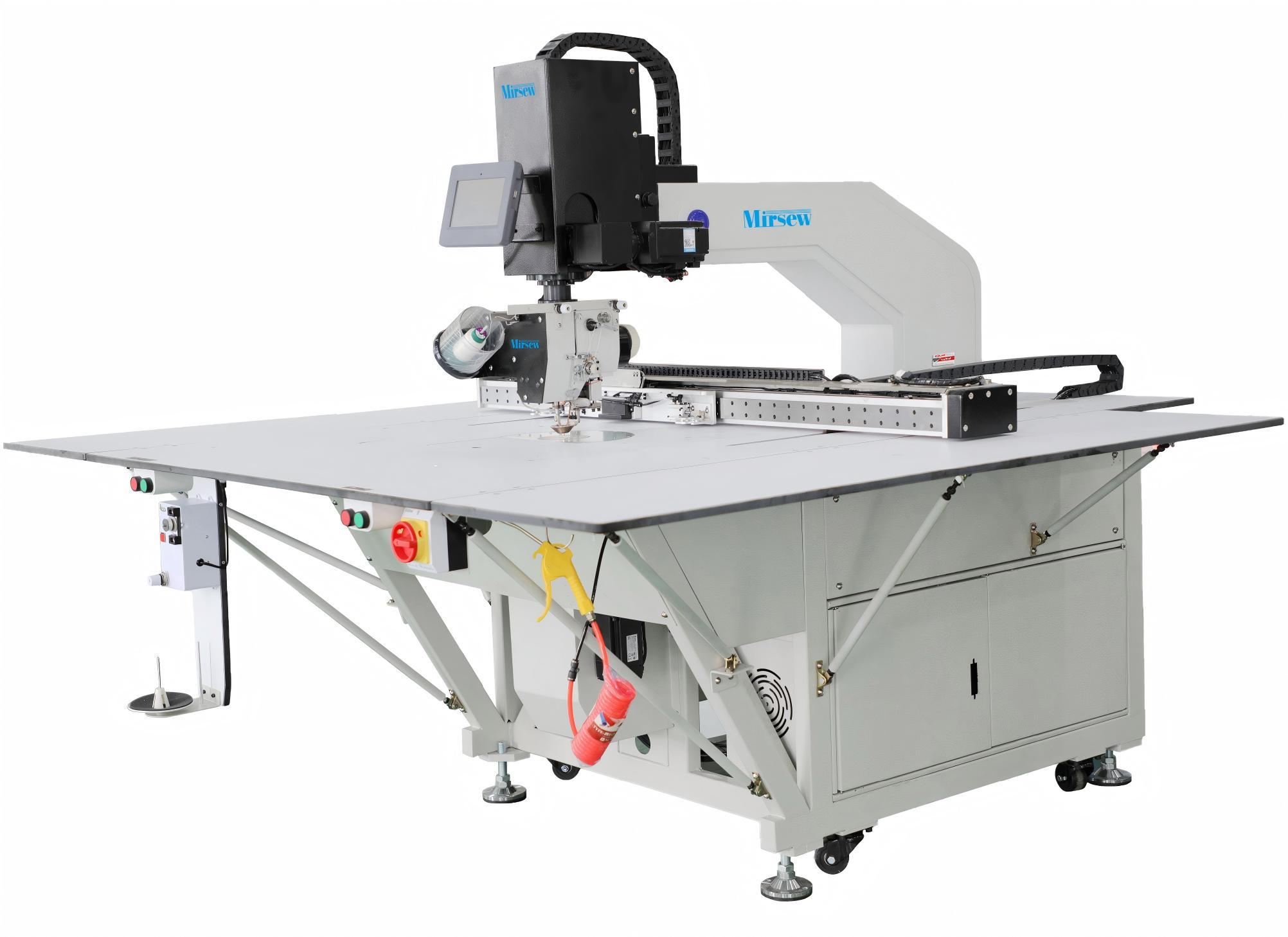

MS-10060-1SD Head Rotate Head Lift Template Sewing Machine

MS-10060-1SD

伸臂旋转式独立驱动花样机（升降机头）

Quantity:

Contact Now

add to cart

Description：

MS-10060-1SD Head Rotate Head Lift Template Sewing Machine

1. Large Sewing Area & High-Speed Performance：Sewing Area: Standard X1000 × Y600mm (expandable up to X2600 × Y1300mm)，Max Speed: 2500 RPM with a maximum stitch length of 12.7mm，Program Capacity: Supports up to 100,000 stitches per program and stores 999 programs.
2. Advanced Control & Connectivity：10-inch Touch Screen: User-friendly interface with multilingual support (Chinese/English)，RFID & IoT Integration: Enables production data tracking and real-time statistics.
3. Precision Drive System：9 Driving Motors: Ensures smooth and powerful operation，X/Y Axis Mechanism: X-axis uses a lead screw, while Y-axis employs a synchronous belt for stability at high speeds，Special Speed Reducer: Enhances durability and performance.
4. Enhanced Lubrication & Durability：Micro-Oil Lubrication System: Prevents oil leakage in the sewing head and hook (adjustable oil output)，Strong Mechanical Presser Foot: Improves fabric handling and stitching consistency.
5. Thread & Trim Stability：Electromagnet Thread-Releasing Structure: Ensures stable auto-trimming，Exclusive Base Design: Reduces noise and enhances machine stability during operation.
6. Flexible Power & Structural Design：Voltage Compatibility: Works with AC110V or AC220V power supply，Rotating Head & Lift Mechanism: Allows versatile sewing applications with reduced material handling.

Specification：

Model	MS-10060-1SD
Rotate	360 degree head rotate 8CM head lift
Sewing area X*Y	1000x600mm(Accept OEM)
Feeding type	X Leading screw,YSynchronous belt
Hook	XL-Hook(26mm)
File format	Convert DXF/Al/PLT format to SLW format with programming software
Needle No.	DPx17
Trimmer	Flat trimmer
Inner presser foot	Mechanicalinnerpresserfoot
Outer presser foot stroke	15mm
Inner presser foot stroke	0-8mm
Inner presser foot lifting height	≤20mm
Package Carton size	(L)205x(W)125x(H)175 cm
Unfold size	201x198 cm
Fold size	201x125 cm
Net weight/gross weight	680kg/720kg
Power	1500W
Air presser /air consumption	0.4-0.6Mpa 3L/min
