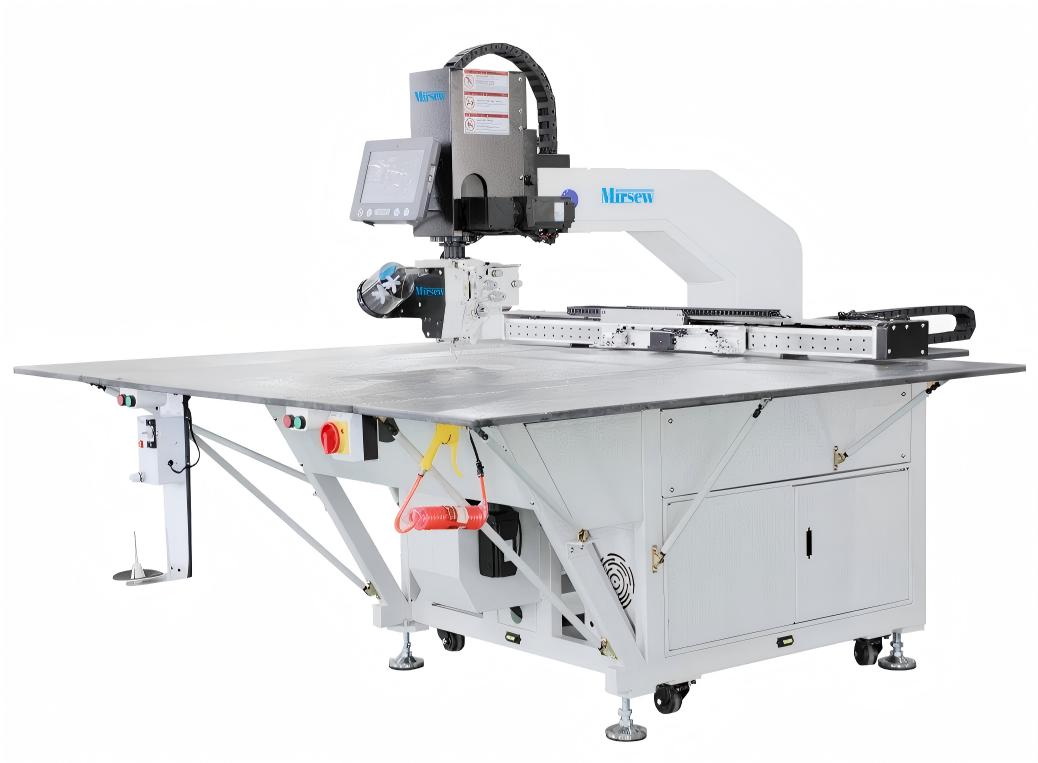

MS-10060-3SD-2 Heavy Duty Two-needle Template Sewing Machine

MS-10060-3SD-2

Applications of Car seats, Car inner decorations, Sofa, Cruise ship seats, aircraft business seats, airbag curtains (driver, passenger,side, knee, chest, etc.), special industrial filters,home textiles and personalized decoration

Quantity:

Contact Now

add to cart

Description：

MS-10060-3SD-2 Heavy Duty Two-needle Template Sewing Machine

1.High Flexibility in Workpiece Handling
Features 360-degree head rotation, template movement in X & Y directions, and 8cm head lift. This facilitates the feeding and removing of bulky workpieces. Maximum working area is X1200*Y900mm.
2.High-Capacity Sewing Performance
Uses an XXL (32mm) vertical hook with big bobbin thread volume. Supports thread sizes up to NM 10/3 and a max sewing speed of 2500rpm. Lock stitches, with single needle and double needle for option.
3.Automated Trimming and Stability
Equipped with an auto trimmer by motor (special trimmer for vertical hook). The cylinder thread releasing structure makes the auto trimmer more stable, especially with thick thread.
4.Intelligent Monitoring and Control
Includes auto needle thread break detection, bobbin thread counting function, and is equipped with RFID. Operated via a 10-inch touch screen with a multilingual system (Chinese, English).
5.Robust Mechanical Drive & Construction
Powered by 9 driving motors. Features a strong mechanical inner presser foot, a special designed speed reducer and gears, and leading screws in X & Y directions. The exclusive independent base and arm design ensure stability and low noise at high speed.
6.Advanced Lubrication Systems
Includes an electrical auto lubrication system for the rotary hook and a micro-oil lubrication system for the sewing head, preventing oil leakage and oil dripping.
7.Connectivity and Data Management
Supports IoT for quick statistics of production data, enabling efficient production management.
8.Versatile Applications & Optional Upgrades
Ideal for car seats, sofa, aircraft seats, airbag curtains, industrial filters, and home textiles. Optional devices include an auto template feeding system, safety light curtains, and an Intelligent Machine Vision system.

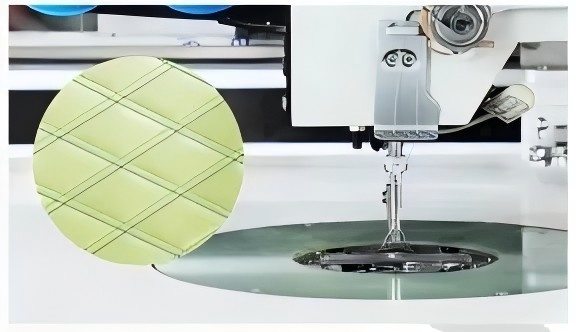

Detail：

Specification：

Model	MS-10060-3SD-2
Rotate	360 degree head rotate 8CM head lift
Sewing area XxY	1000x600mm(Max:X1200*Y900mm)
Feeding type	Leading screw
Hook	XXL vertical rotary hook (32mm)
File format	Convert DXF/Al/PLT format to SLW format with programming software
Needle No.	DPx17
Trimmer	Flat trimmer
Inner presser foot	Strong mechanical inner presser foot
Outer presser foot stroke	15mm
Inner presser foot stroke	0-8mm
Inner presser foot lifting height	≤20mm
Package Carton size	(L)205x(W)125x(H)175 cm
Unfold size	201x198 cm
Fold size	201x125 cm
Net weight/gross weight	680kg/720kg
Power	1500W
Air presser /air consumption	0.4-0.6Mpa 3L/min
