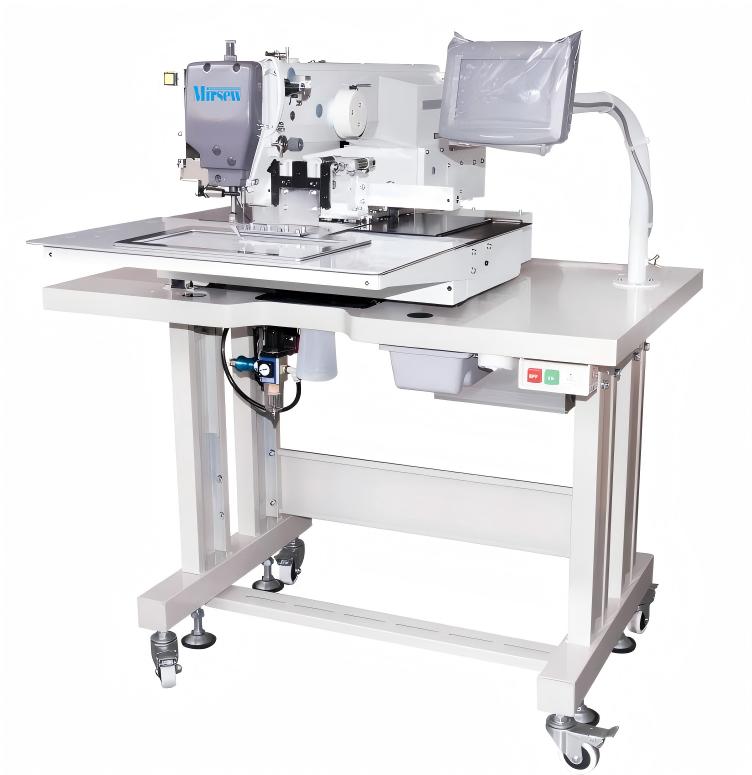

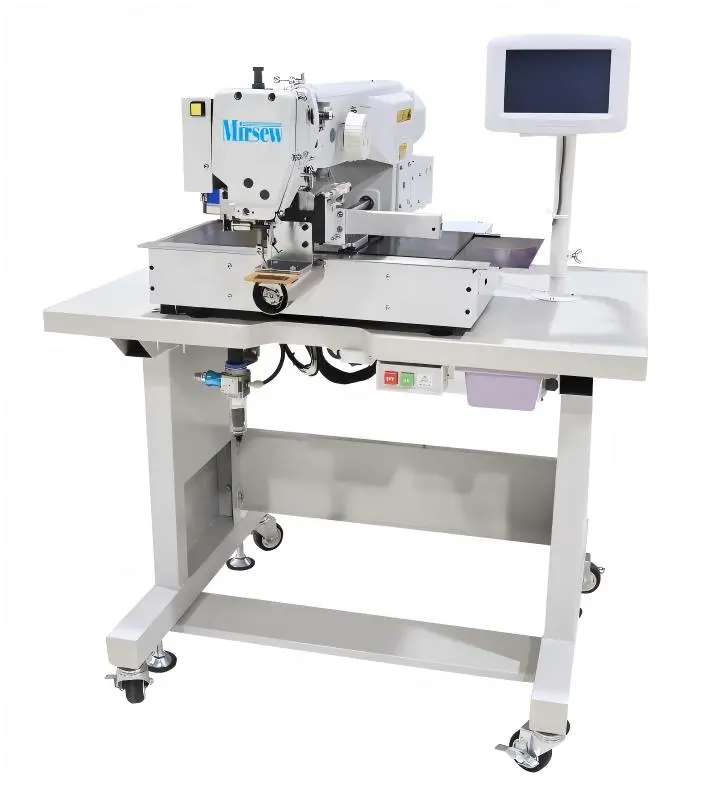

MS-2516SH-2 Small hook pattern machine

MS-2516SH-2
The MS-2516SH-2 is a specialized small-hook pattern sewing machine engineered for high-precision sewing and automated operation. Its unique narrow needle bar and presser foot assembly allow it to access and sew intricate, hard-to-reach areas with ease, making it an ideal solution for complex contours and small cylindrical items.
Quantity:
Contact Now
add to cart
Description:
MS-2516SH-2 Small hook pattern machine

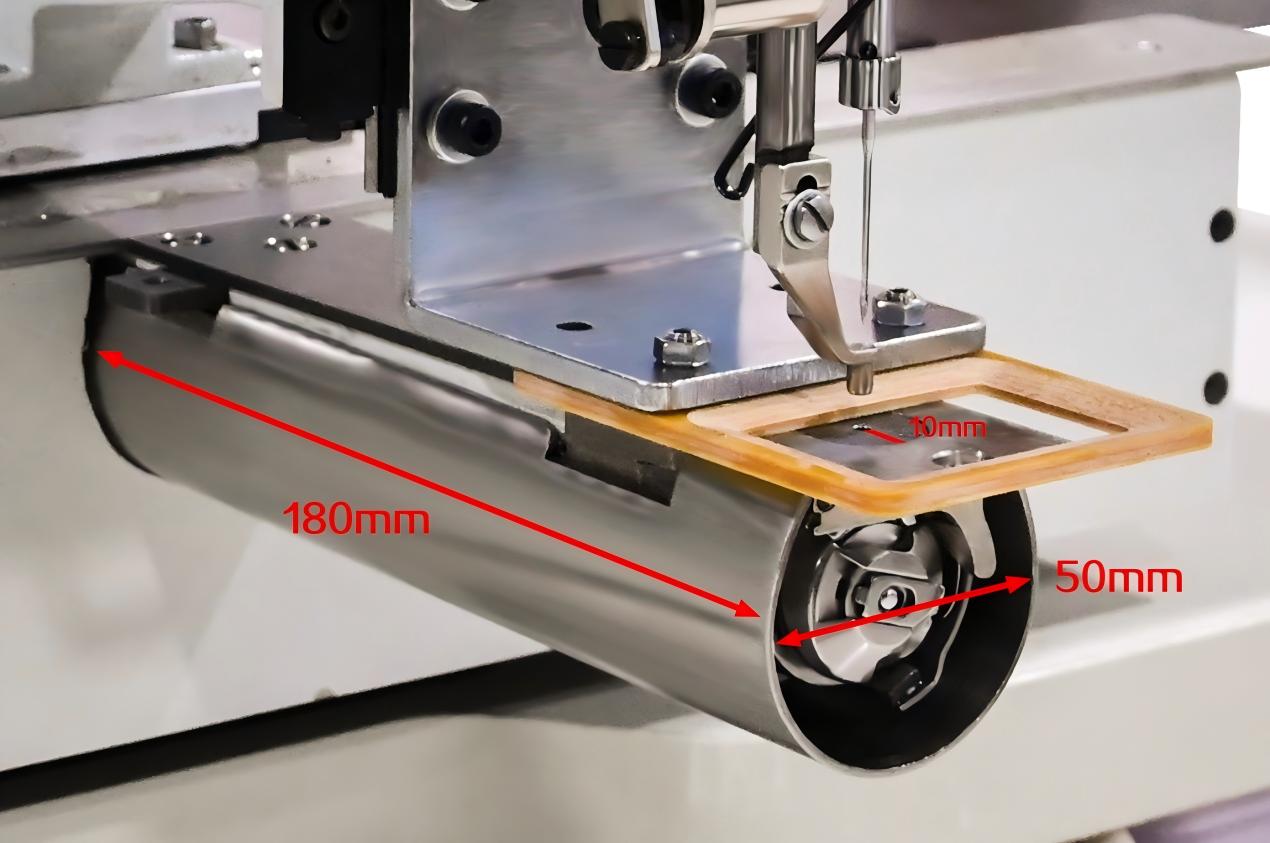

1. Narrow Sewing Head & Small Hook Design: The compact sewing head provides unparalleled access to confined spaces like cuffs, collars, and pre-assembled shoe uppers, enabling flawless stitching in intricate patterns；
2. Automatic Thread Trimming: Integrated auto thread trimming ensures a clean and efficient workflow. It cuts both top and bobbin threads instantly at the cycle's end, saving time and reducing manual labor；

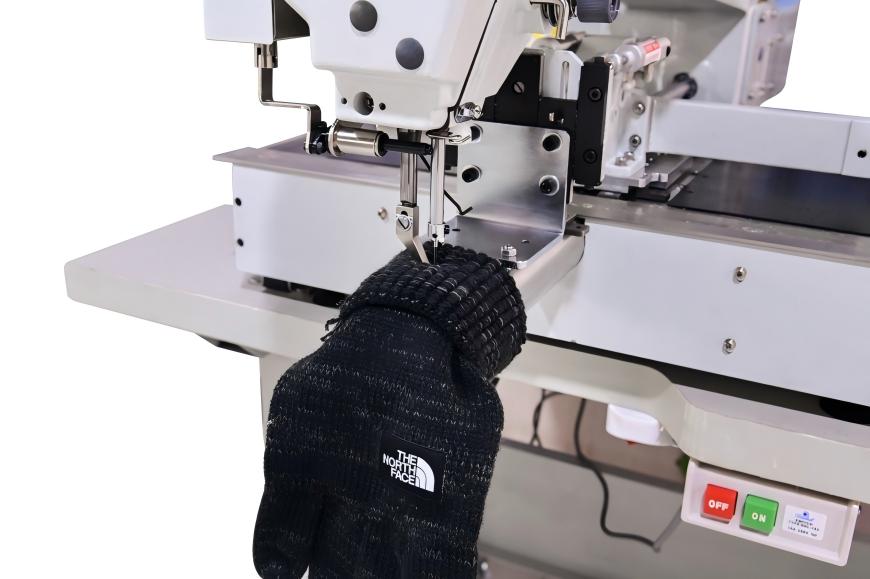

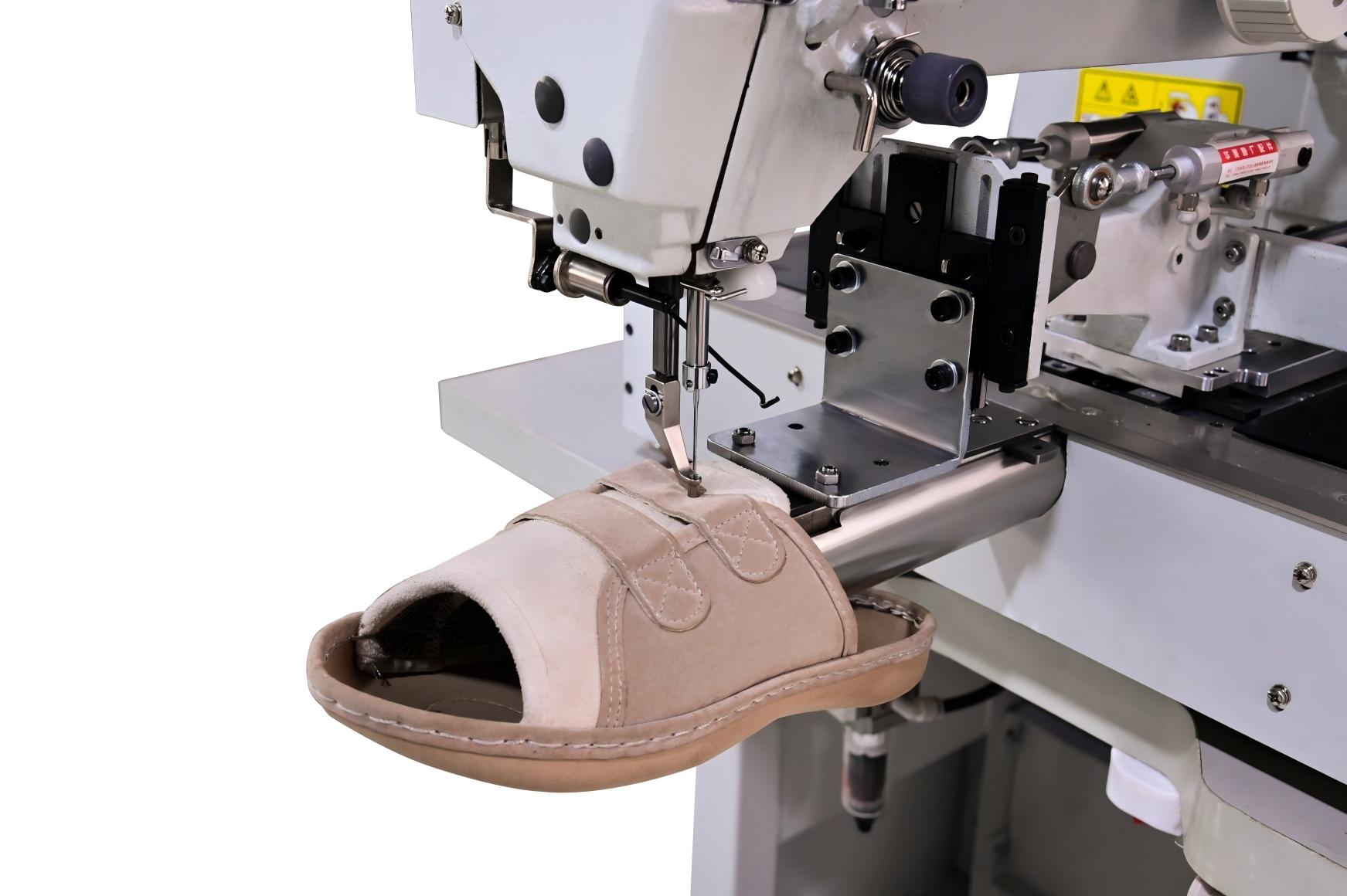

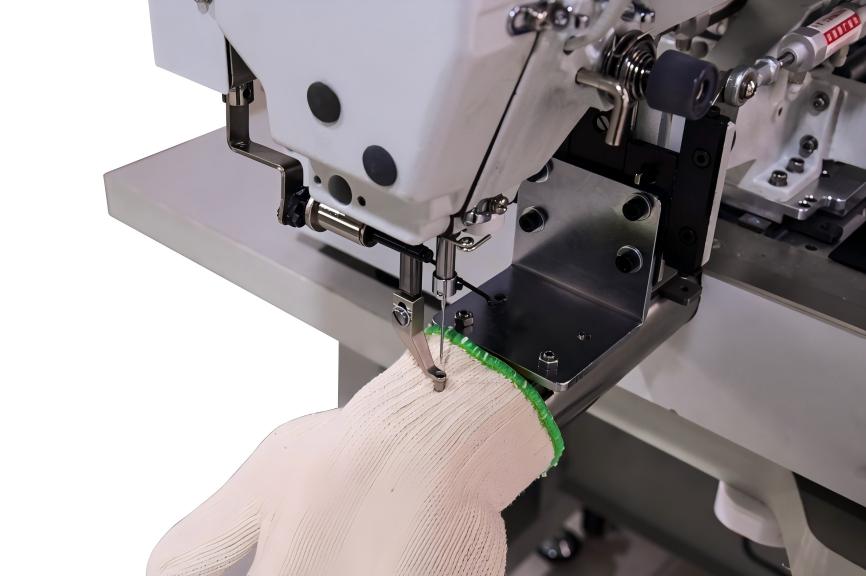

3. Versatile Sewing Applications: Excellently suited for a wide range of products including hat edges, gloves, footwear, cuffs, children's wear, and other small-sized or tubular items that are challenging to flatten；
4. Consistent & High-Quality Stitches: Delivers neat, tight, and secure seams with superior durability. The machine ensures stable and firm stitch quality, even on complex curves and multiple fabric layers；
5. User-Friendly Operation: Designed for easy setup and smooth integration into existing production lines, allowing operators to maintain high efficiency and consistent output with minimal training.

Applicable types：
Ideal For:
Garment factories, hat and glove manufacturers, footwear production, and any textile industry requiring precise pattern sewing and edge-stitching on small or curved components.

Related:

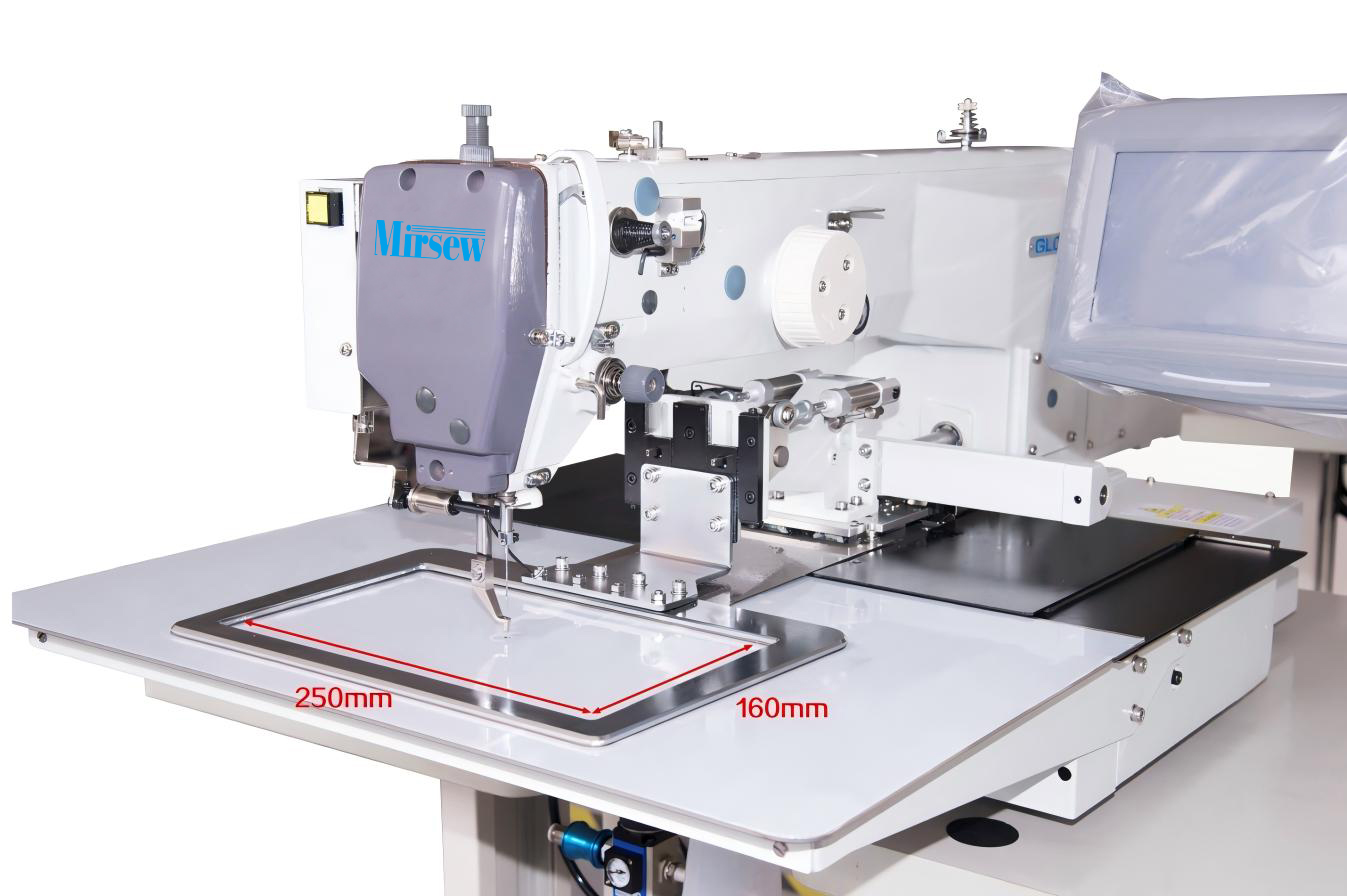

       Can be installed with a needle plate for sewing                                                 Max Range：25cm × 16cm
Parameter：
Model
MS-2516SH-2
Sewing range
250mm x 160mm
Stitch type
Single-needle lockstitch
Sewing speed
200-2800 RPM
Stitch length setting
0.1-12.7mm
Maximum stitch count
8000 stitches/pattern
Operation panel
Touch panel
Maximum pattern count
1000 patterns stored in the machine, unlimited patterns stored in an external USB flash drive
Sewing machine motor
AC servo motor 750W (built-in direct drive)
Hook
Double thread gauge hook
Needle
DPX17#14-25
Lower thread count
Raise/lower (0-9999)
Inner presser foot lift
38mm
Intermediate presser foot lift
4-10mm
Intermediate presser foot type
Motor
Power supply
AC 200-220V with grounding protection
Compressed air pressure
0.4-0.5MPa (maximum 0.55MPa)
Thread guide
Solenoid valve drive
Needle bar stroke
40cm
Dimensions (unpacked)
Length 1200mm x Width 1060mm x Height 1270mm
Weight
170kg
