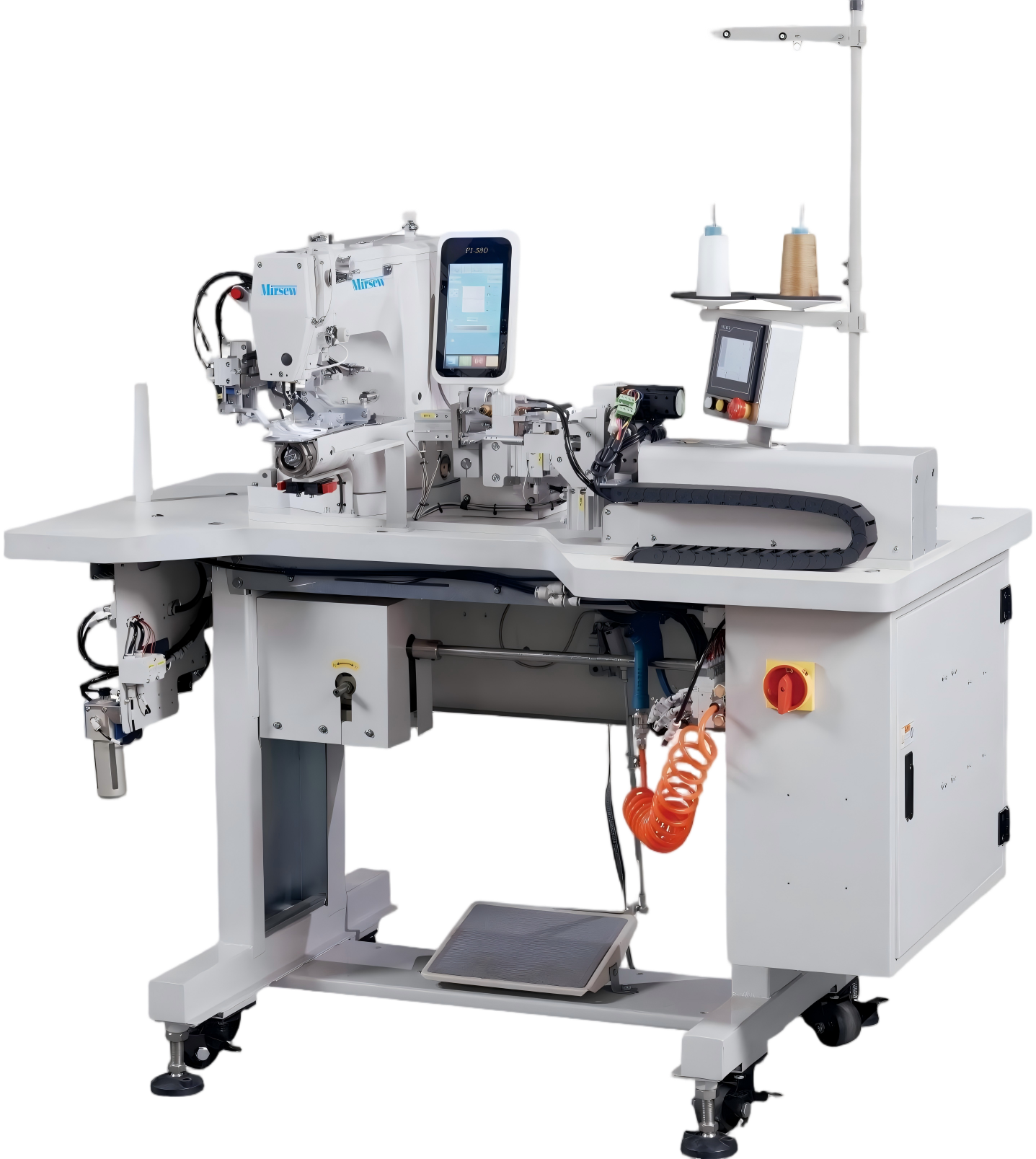

MS-430D-KP2 Single needle pants loop machine

MS-430D-KP2
The single-needle trouser loop machine is a device that can automatically sew trouser loops and sew bar tacking at the same time.
Quantity:
Contact Now
add to cart
Description：
MS-430D-KP2 Single needle pants loop machine
1. The single-needle trouser loop machine is a device that can automatically sew trouser loops and sew bar tacking at the same time.
2. It combines the original trouser loop and bar tacking processes into one, and ordinary workers can also easily get started;
3. Automatic over-joint and lack of material alarm function;
4. The overall transmission device is closed, and it has a material slowing function when pulling the material, which can be used for sewing some elastic fabrics;
5. About 16 trouser loops can be sewn per minute (2800 revolutions).
6. The waistband stitching width ranges from 0.8 cm to 2 cm, and the stitching length ranges from 4 cm to 7.5 cm.
Detail：

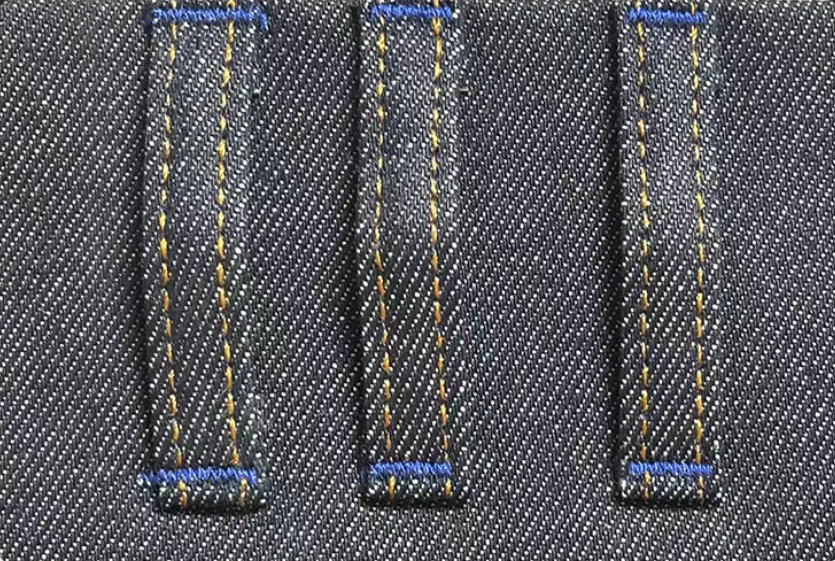

The machine can automatically sew the pant loop, or it can also separately sew the buttonhole.

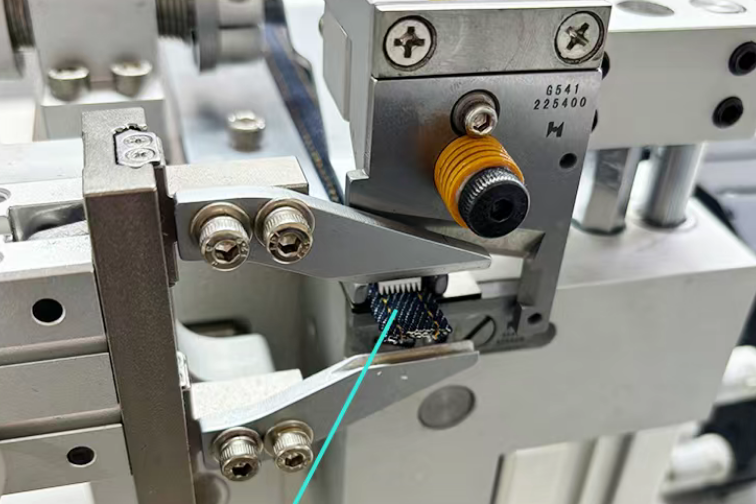

The machine automatically cuts the material to the preset length.

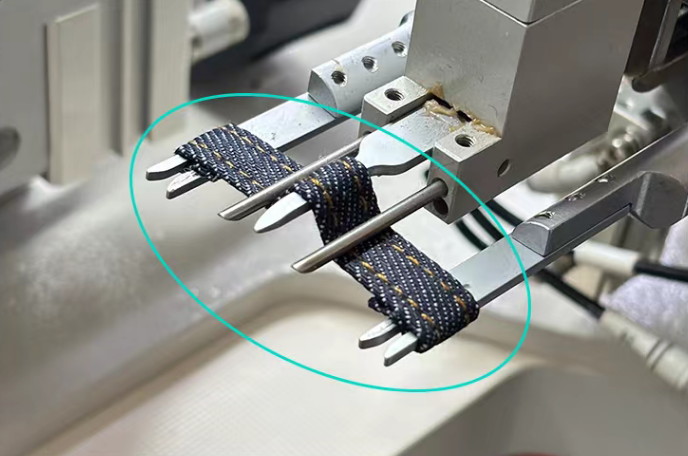

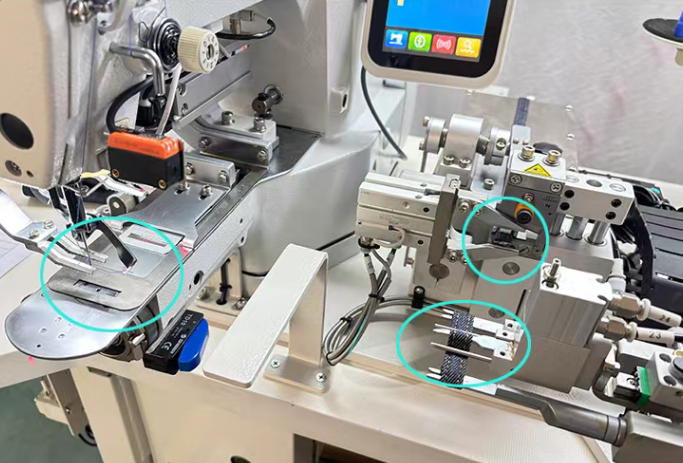

When sewing trouser loops, it can automatically cut the material according to the set length, automatically fold the material, automatically feed the material and automatically sew;
Specification：
modelMS-430D-KP2Presser foot height20mm
sewing machine needleDP*5X14#maximum speed3200 revolutions per minute
stitch length0.05-12.7mmouter packaging dimensions148x94X143cm
Suitable Fabricwoven/denimNet weight260kg
