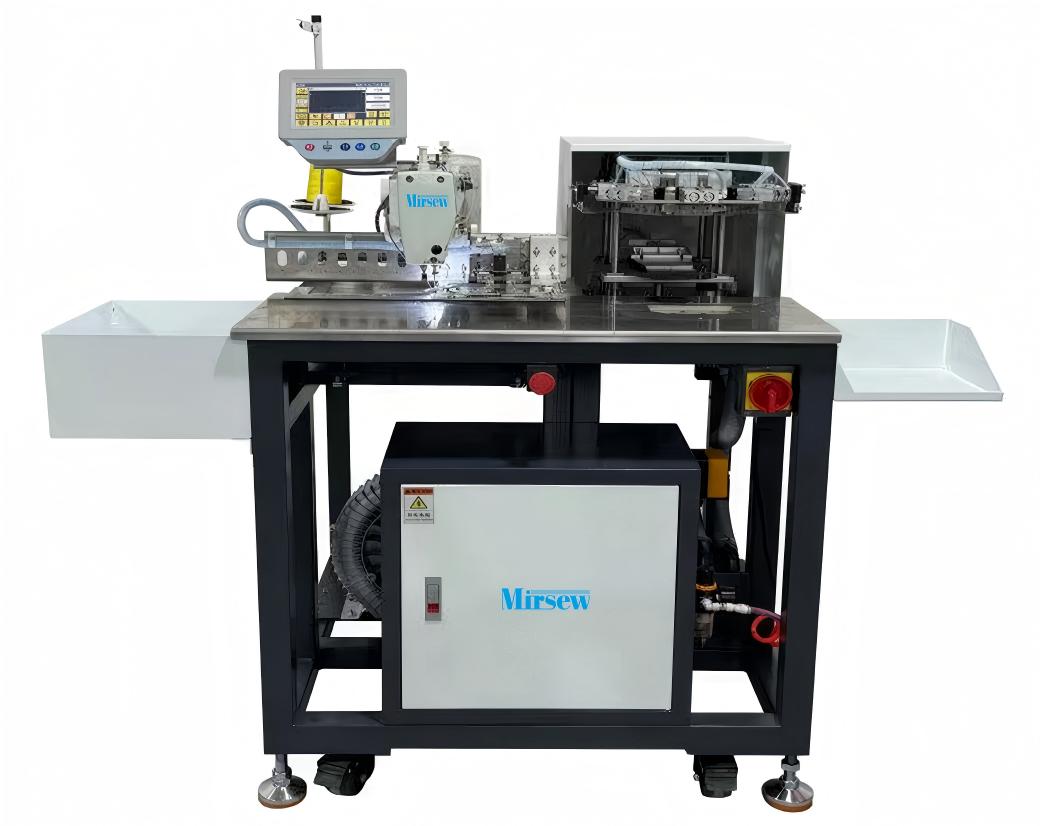

MS-586DG Automatic Pocket Flap Sewing Machine

MS-586DG
Automatic pocket flap sewing machine forms bag covers in one step by simply placing fabric pieces, eliminating the need for stitching hidden seams or flipping. Utilizing quick-change molds and a computer-controlled servo-pneumatic system, it ensures stable, high-quality sewing on a wide range of materials.
Quantity:
Contact Now
add to cart
Description：
MS-586DG Automatic Pocket Flap Sewing Machine
1. Forms pocket covers in one go by simply placing fabric pieces.
2. Eliminates the need for stitching hidden seams or turning flaps.
3. Utilizes a pattern sewing machine head.
4. Allows for quick mold changes.
5. Compatible with sewing both thick and thin fabrics.
6. Achieves perfect sewing effects with the presser foot installed.
7. Features full computer program control with servo-pneumatic drive.
8. Offers easy operation and high stability.
（Automatic pocket flap sewing machine forms bag covers in one step by simply placing fabric pieces, eliminating the need for stitching hidden seams or flipping. Utilizing quick-change molds and a computer-controlled servo-pneumatic system, it ensures stable, high-quality sewing on a wide range of materials.）
Detail：
Sewing various types of bag covers.
Specification：
Machine model
MS-586DG
Machine head configuration
Pattern sewing machine by 326
Production capacity (per hour)
180-200 pieces/hour (depending on pocket size and number of stitches)
Hook type
Shuttle hook
Route
100mm x 150mm
Max speed
3000 RPM
Stitch length
0.1-12.7mm
Machine size
91cm x 111cm x 123cm
Working voltage
AC220V
Working air pressure
5Bar (with low air pressure alert below 5Bar)
Air consumption
230L/min
