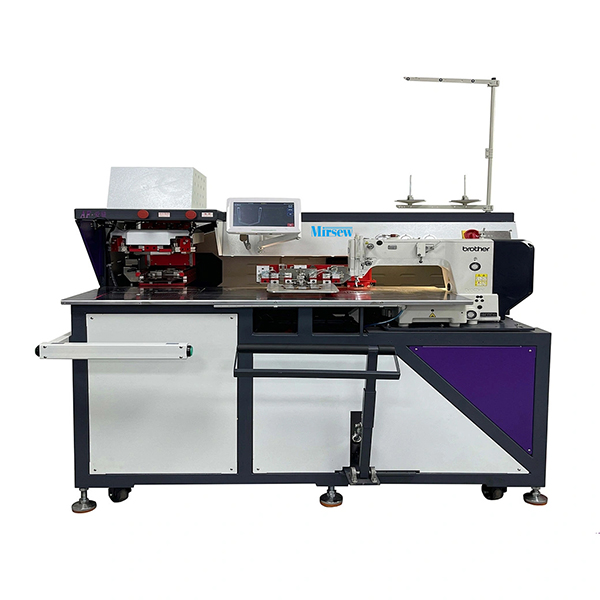

MS-LT288-311 3D Pocket Welting Sewing Machine

MS-LT288-311
The biggest feature of the MS-LT288-311 pocket flap machine is that it has excellentontrol over special soft, elastic and smooth fabrics.
Quantity:
Contact Now
add to cart
Description：
MS-LT288-311 3D Pocket Welting Sewing Machine
1. Equipped with Japanese Brother BAS-31XH-05 pattern sewing head.
2. Quick replaceable mold design, compatible with both thick and thin fabrics.
3. The pattern sewing head adapts to both thick and thin materials. With matched presser foot installed, it can achieve perfect sewing stitches.
4. Full computer program controlled, servo + pneumatic drive, easy operation and high stability.
5. Suitable for patch pockets and back pocket sewing on jeans, knitwear, shirts, work clothes, leisure wear and military uniforms. It can sew pocket flaps simultaneously and supports customized production.
Detail：
Specification：
Machine model
MS-LT288-311
Machine head
Brother BAS-31XH-05
Production capacity (per hour)
 90-120 pcs/hour (Depends on pocket size and number of sewing stitches)
Hook type
Shuttle hook
Max sewing range
250mm × 250mm
Min sewing range
100mm × 100mm
Max speed
3000 RPM
Stitch length
0.1 - 12.7 mm
Machine size
173cm × 154cm × 156cm
Package size
180cm × 160cm × 176cm
Net weight
450 kg
Gross weight (G.W.)
620 kg
Working voltage
AC 220V
Working air pressure
5 Bar (Low air pressure alert when pressure below 5 Bar)
Air consumption
230 L/min
