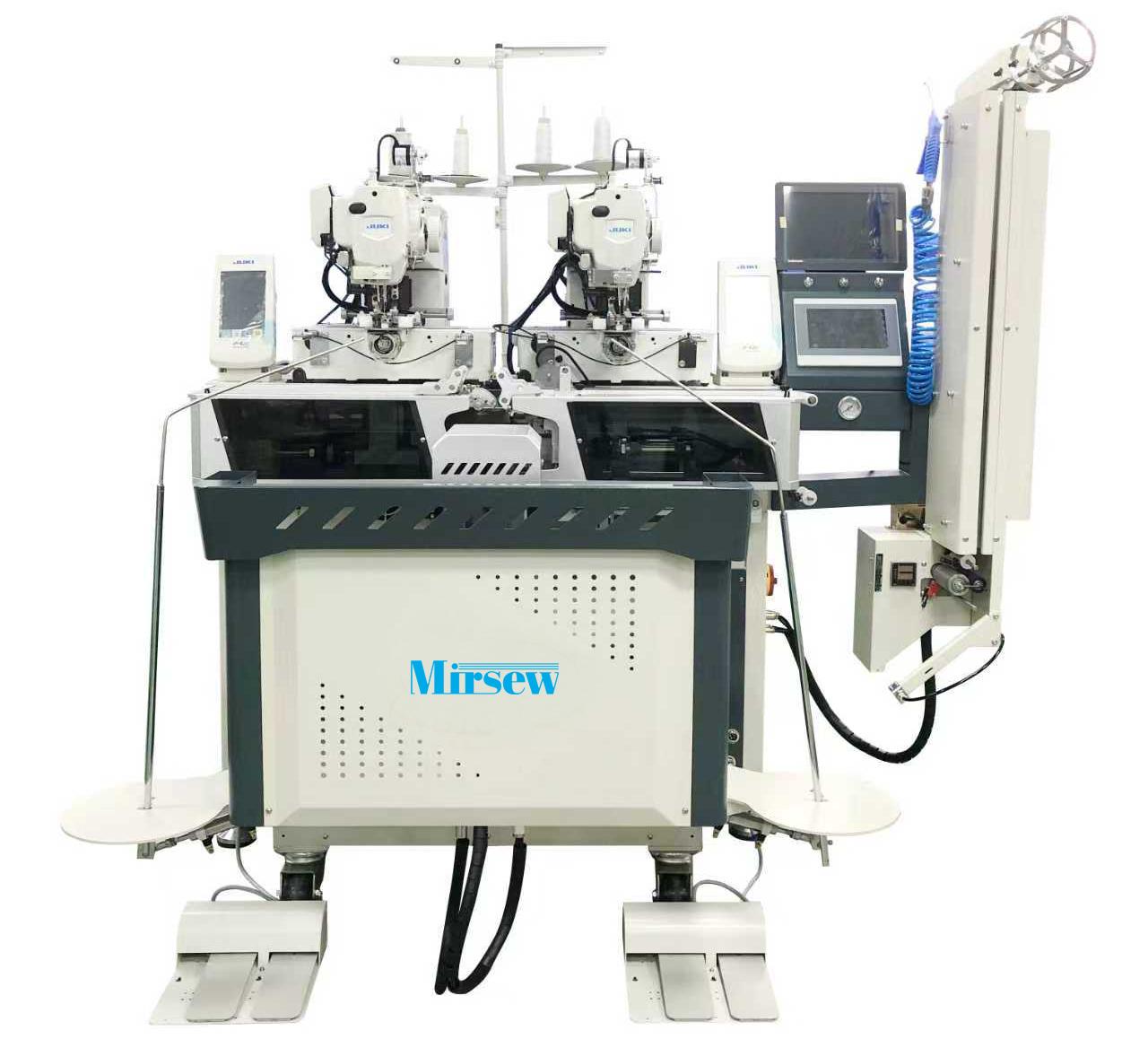

MS-103E Automatic Elastic Band Jointer

MS-103E
Flat seams,overlapping seams,welding,adhesive cutting,and then sewing°are available Multi functional process,splicing 750 to 1040 pieces per hour.
Quantity:
Contact Now
add to cart
Discription:
MS-103E/MS-102E/MS-101E Multifunctional dual station automatic rubber splicing machine
(ultrasonicwelding&logobendhmarking)
1. High definiton visualcamera recognition letter logo alignment；
2. Automatic identfication of rubber joint and automatic cutting off；
3. Automatic alam for disconnection；
4. Automatic counter；
5. Welding and re flat joint;
6. suit for undewear, sportsdothes, home dothes, wamdothes, cildren'scotes, yogadothes, has, bags.
Detail：
Ultrasonic seamless welding                         Flat seam                                    Overlap seam
 Application:
Specification:
Model
MS-103E
MS-102EMS-101E
Descibe
Automatic Elastic Band Jointer
     Automatic Elastic Band Jointer Automatic Elastic Band Jointer
Power
Main unit 450W + ironing device 1000W
Use power
220Vsngle-phase 50/60hz(heremustbegroundwire)
Use air pressure
0.4~0.6Mpa(0.406Kgf/cm²)
Machine needle
DP×5(11#,12#)
Control system
NC Control
Sewing macnine speed
2700rpm(MAX)
Rubber band sewing width
15mm~50mm
Mnimum folded length
150mm
Measurement output system
Servo motor
Pattern storage
Memory card
Maximum number of pattern
128M maximum
Pattern data
128 patterns
Cutting method
Ultrasonic welding and cutting
Applicable fabric
Rubber band jacquard belt
Sewing output
①1000 pieces/hour(70stitches, total length 600mm,not alphabetic)
②600pieces/hour(220stittches, total length 600mm,not alphabetic)
Package size
180(L)×110(W)×175(H) CM
Gross weight
420 KG
