T05 Full Function Direct Drive Motor

T05
Apply to all kinds of lockstitch and zig-zag sewing machine
Quantity:
Contact Now
add to cart
Description：

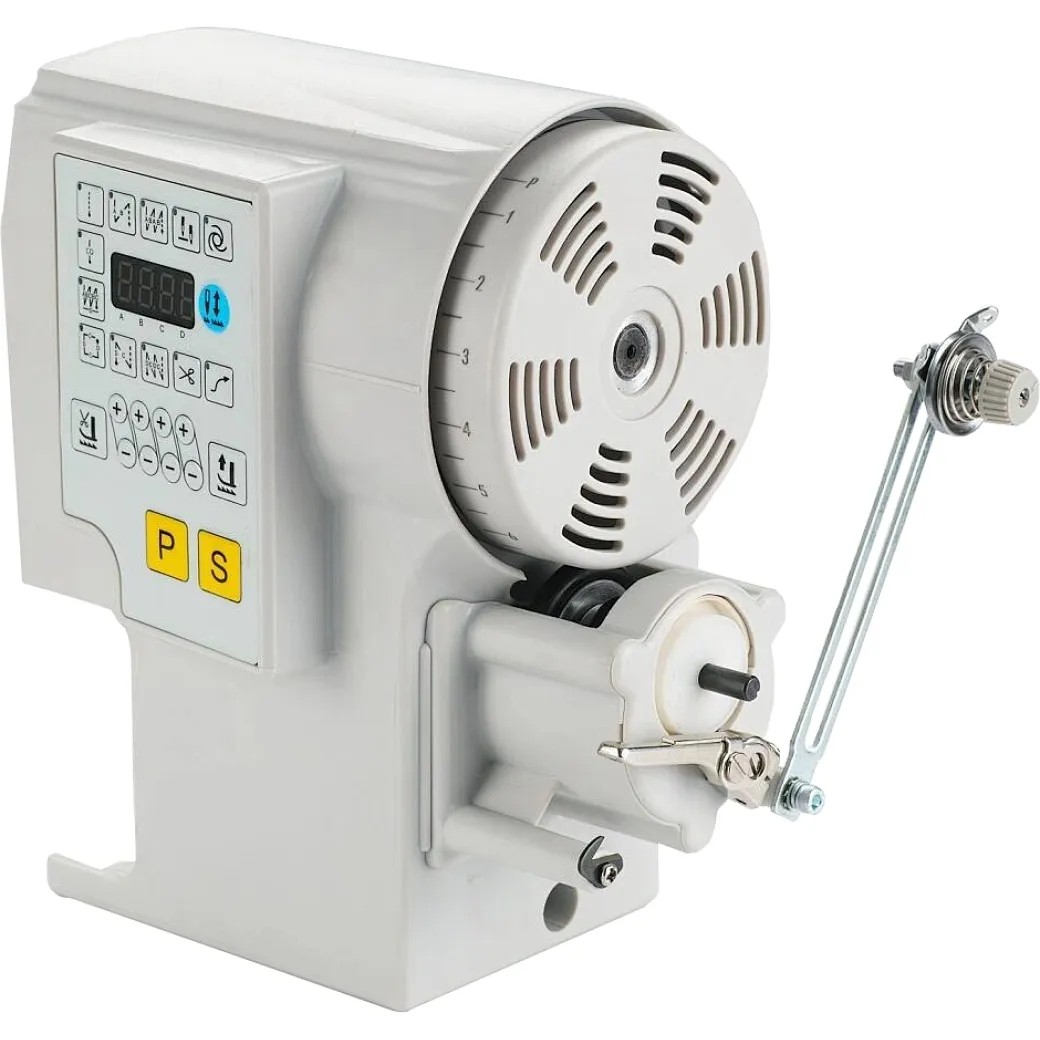

T05 Full Function Direct Drive Motor
1. Apply to the antomatic lockstitch machine of JUKI, BROTHRT and SUNSTAR;
2. Multifunction MMI(man-machine interface), more controllable and simple operation;
3. Integrative structure, equipped with bobbin winder. No need to shorten the sharf, remian the mechanical structure and performance of sewing machine.Easier installation and more reliable performance;
4. Powered by high performance direct-drive servo motor. Powerful torque,low noise,more stable quality and more energe efficient;
5. Protections: Over current, over voltage, locked rotor etc, safety and stability guarantee in operation;
Application:
Apply to all kinds of lockstitch and zig-zag sewing machine;
Specification:
ModelApplicationSpeedVoltagePowerFrequency
T05LockstitchJUKI 8700/5550 Series100-5500 r/min180-240 V550W/750W50/60Hz
SUNSTAR 250A Series
PROTEX B211-933SV Series
TYPICAL 6180 Series
BROTHER 737 Series

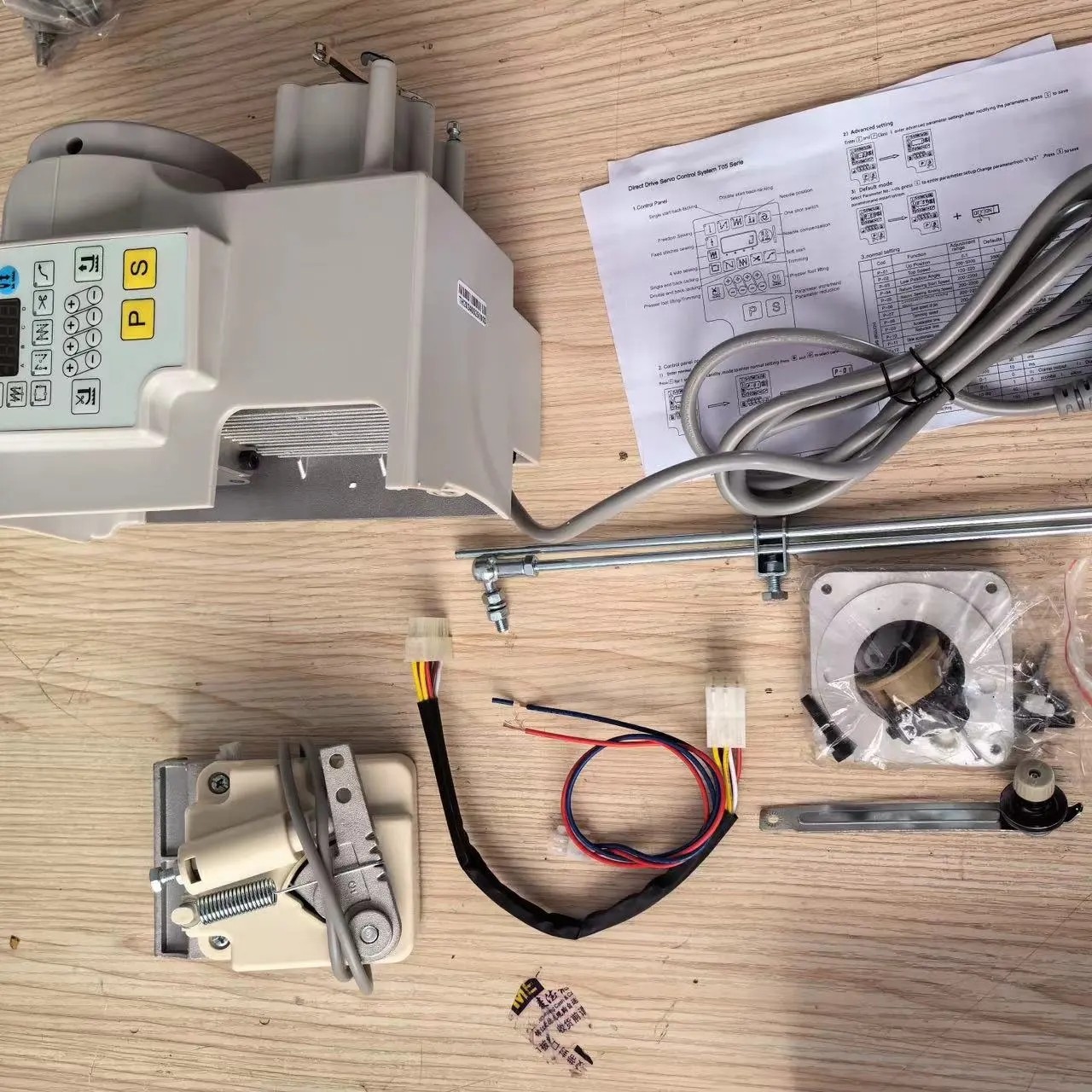

Parts：
Installation：
1.Install the fixing plate on the machine head;
2.tighten the screws;
3.Put the plane of the machine head axis up;
4.The coupling convex faces the machine head (the dot on the front is placed in the same plane as the machine head axis);
5.The convex position of the coupling rubber sleeve is aligned with the concave position of the coupling;
6.Install the motor (the concave position of the motor should be aligned with the convex position of the rubber sleeve);
7.Install the hexagon socket screw (the screw should be equipped with a meson);
8.The axis plane is facing upwards, and point P of the hand wheel is aligned with the horizontal line of the motor;
9.Tighten the upper screw first, and then tighten the other screws;
10.Power on the test machine;
