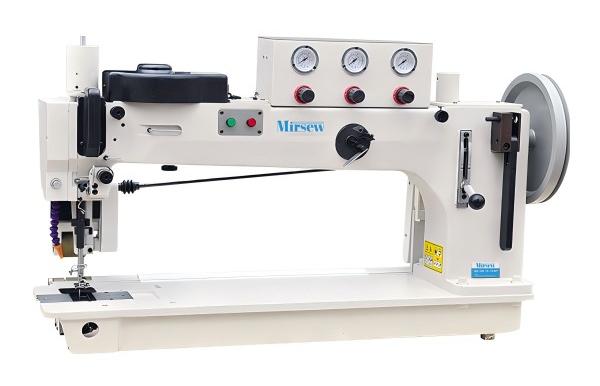

MS-366-76-12HM Zigzag Sewing Machine For Over-length And Extremely Thick Materials

MS-366-76-12HM
Quantity:
Contact Now
add to cart
Description:
MS-366-76-12HM Zigzag Sewing Machine For Over-length  And Extremely Thick Materials
1. Zigzag for over-length and extremely thick materials.
2. Top and bottom synchronous feeding.
3. synchronous wheels, make it more stable and stronger feeding power for the purpose of multilayer thick materials sewing.
Parameters:
Model
MS-366-76-12HM
Maximum sewing speed
700r.m.p.
Maximum stitch length
10mm(0-10)
Maximum swing of zigzag sewing
14mm(0-14)
Zigzag sewing mode
Two points, three points, four points
Needle bar stroke
50.8mm
Take-up lever stroke
106.8mm
Needle
DYx3 27#
Shuttle hook
Large semi rotary hook
Presser foot lifting height
20mm
Lubrication system
Manual lubrication
Working space
760×160mm
Motor
550W Electronic speed control motor
Configuration:
* MS-750N servo motor
* HM550W servo motor
Applications:
